Small House Plan 12×8.5 Meter 3 Beds

Small House Plan 12×8.5 Meter 3 Beds 2 Baths Gable Roof PDF Plan PDF Plan. This villa is modeling by SAM-ARCHITECT With 1 stories level. It’s has 2 bedrooms. Est. Price around 24-30k usd construction only, furniture not include.

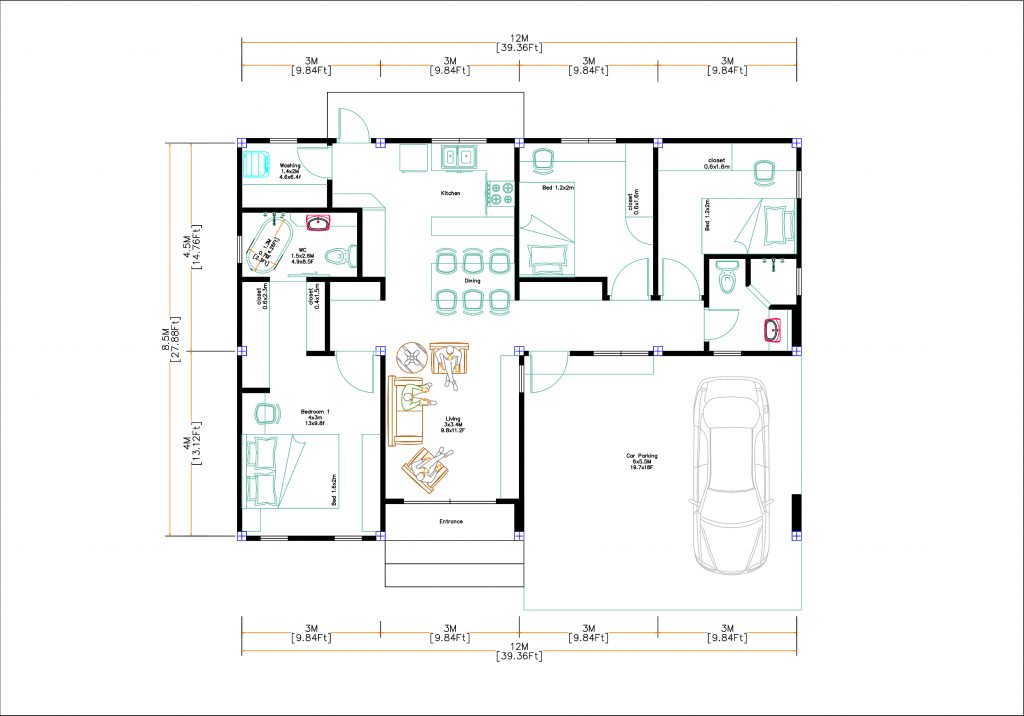

Small House Plan 12×8.5 Ground Floor Plans Has:

Are you looking for house plan for your family? This small house plan is perfect for you, the function of this house is fully complete. 2 car parking at the right side. Very nice main entrance with stair, Two exit doors. Small living room open space to American kitchen and dining area.

The Master Bedroom size is 4×3 meters, it have a big glass window with a queen size bed, Makeup desk and 2 closets , attached with bathroom 1.5×2.6 meter. Small Bedroom 2 and bedroom 3.

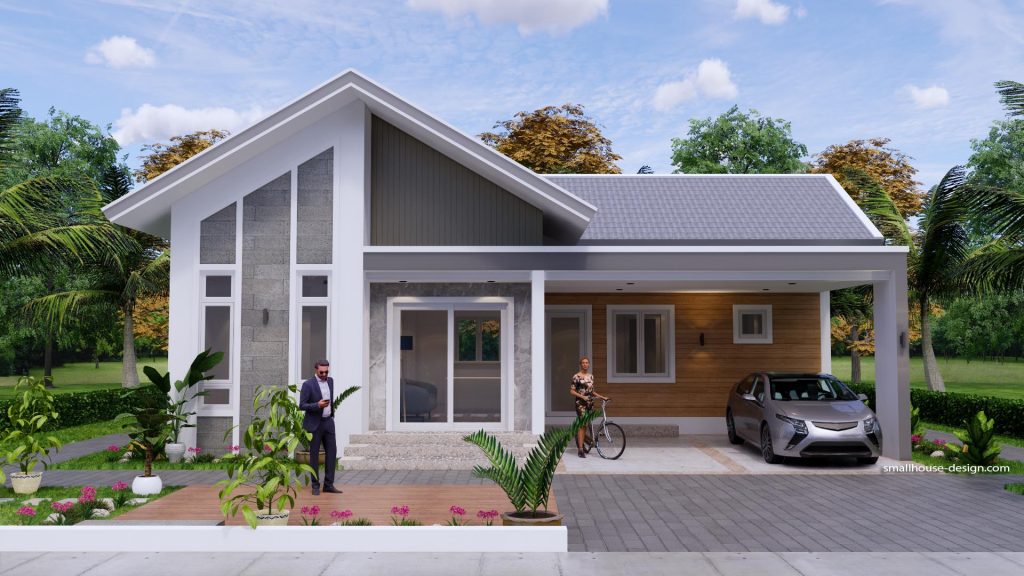

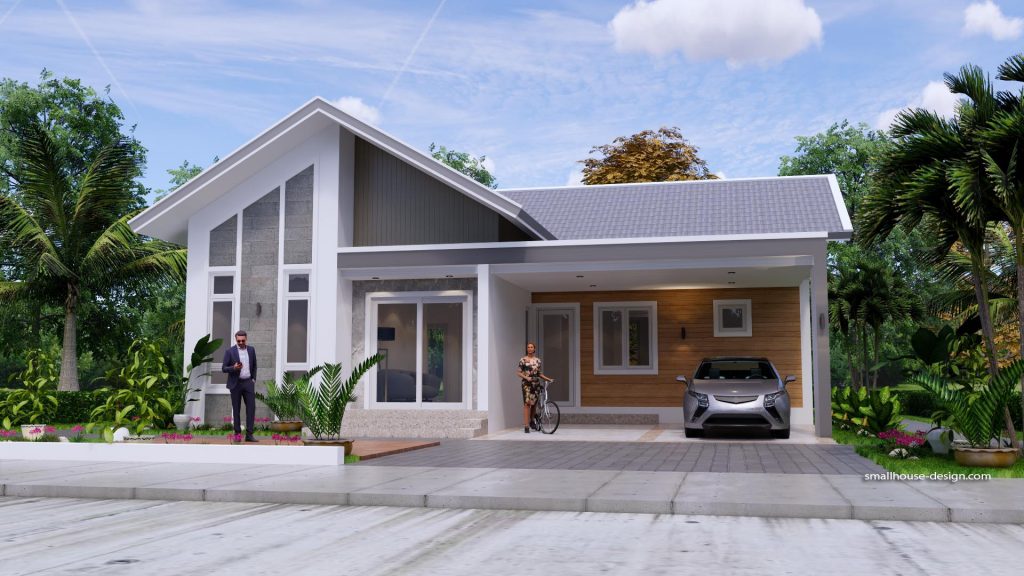

Exterior Small House Plan 12×8.5:

Similarly, to the roof border color we choose a bite dark and light color combination together with a big glass door and window to get the house look so beautiful and Modern house.

The Gable Roof Tile:

Finally, The Gable roof type is made from cement that cover above Gypsum board ceiling . It is make the house look simple and modern.

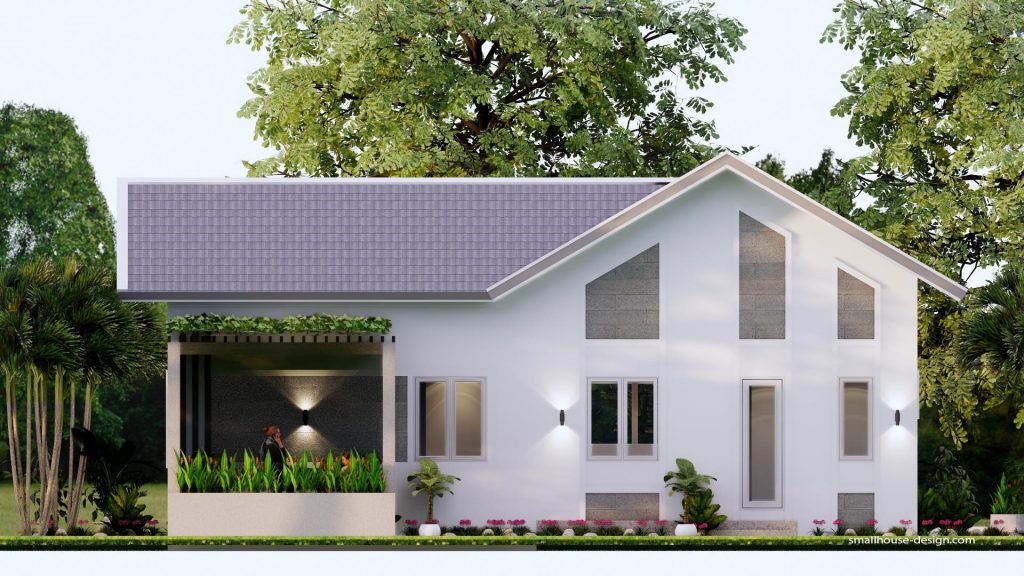

The Back Elevation:

Even this is the back of the house, we also want it look beautiful. This house have a big door to get out of the house.

House Short Description:

Ground floor:
-2 Car Park
-Living room
-Kitchen and Dinning
-Storage and washing room
-3 Bedrooms
-2 bathrooms

First floor:
-Concrete + Gable Roof

PLEASE MAKE SURE YOU HAVE CHECK the free sample plans

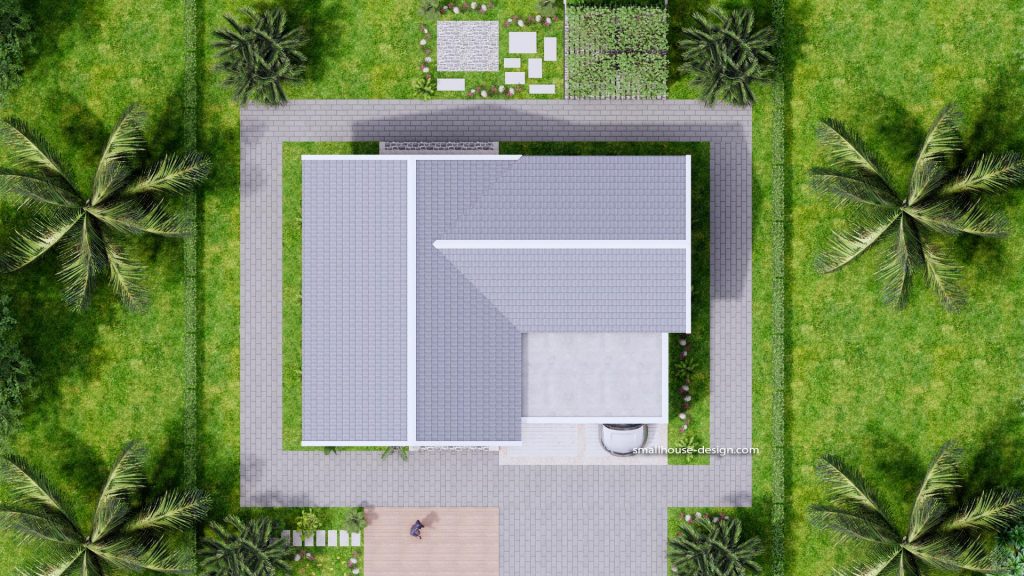

The 3D Bird View:

Interior design 3d:

For interior design of this house we do a simple design as it will lower cost the price to build.

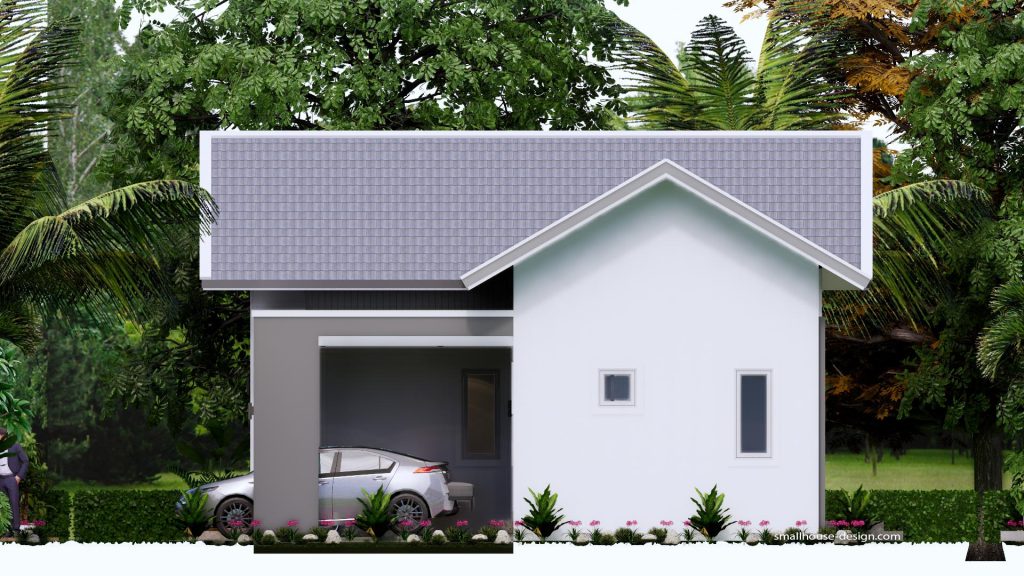

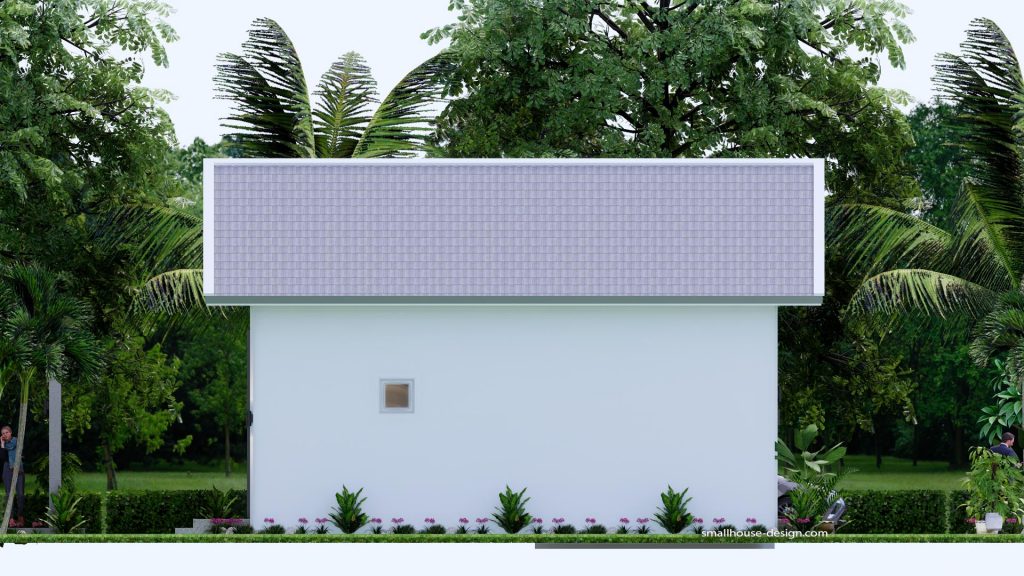

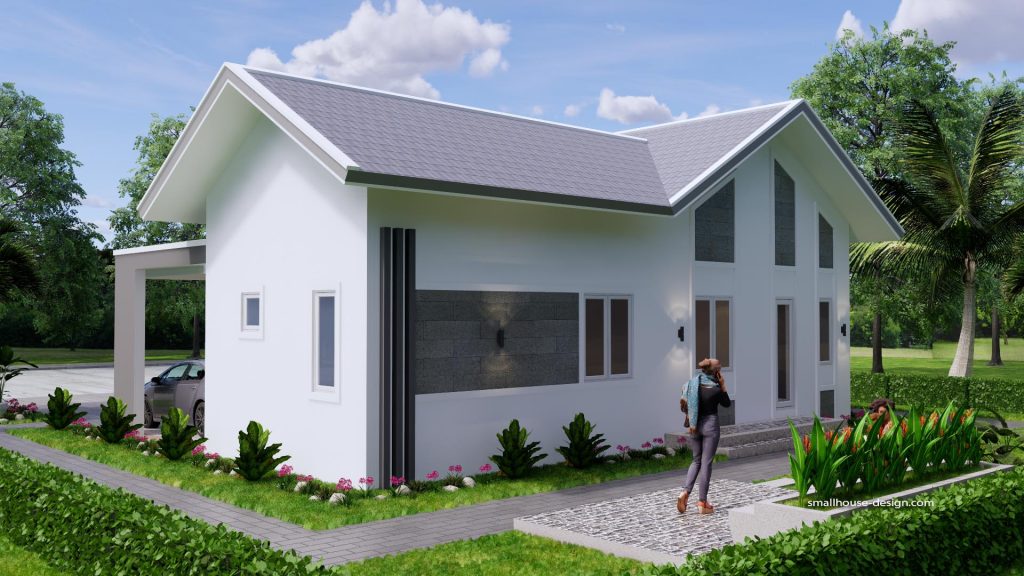

The Elevation 3d:

The PDF Layout Plans:

Buy this house plan:

This is a PDF Plan available for Instant Download.

3-Bedrooms 2-Baths home with mini washer/dryer room.

Building size: 40 feet wide, 28 feet deep. 12×8.5 meter 1 floor

Roof Type: Concrete slap + Gable roof (cement tile or other supported type)
Foundation: Concrete or other supported material

For the reverse plan, please see other Model.


Footing, Beam, Column Location plan

Exterior / Interior wall Dimension Plan

Roof Beam Plan

Roof Plan

Elevations plans

Cross Section plans

Ceiling Lighting location Plan

You are purchasing the PDF file for this plan. Print it out whenever you like, as many times as you like.

Plan prints to A4 paper.


Unfortunately I’m unable to do custom plans at this time.


These plans were produced by myself and were not prepared by nor checked by a licensed architect and/or engineer.

I do not represent nor imply myself to be a licensed architect and/or licensed engineer.

Enjoy these plans but use them at your own discretion.

Your files will be available to download once payment is confirmed.

I don’t accept returns, exchanges, or cancellations. But please contact me if you have any problems with your order.

Your could Reach Us: Personal FB: Sophoat Toch

Facebook Page: Sam Architect
Facebook Group: Home Design Idea
More Plans Download On Youtube: Sam Phoas Channel
If you think this Plan is useful for you. Please like and share.
